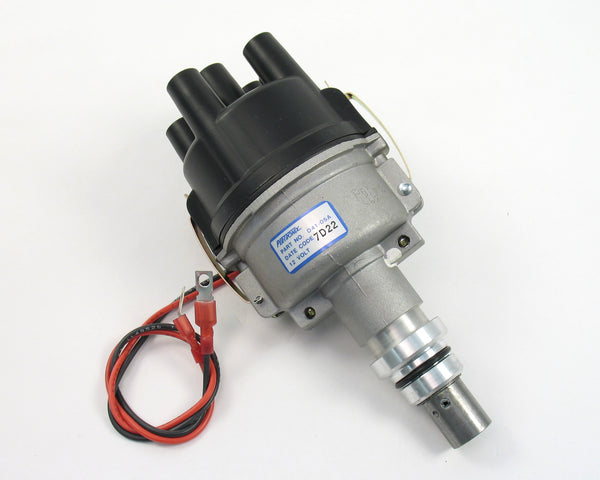

Continental 4 Cylinder Engine Distributor, F4 and Y4 Series, 12 Volt Negative Ground

Pertronix

The Pertronix D41-05A Engine Distributor improves performance and reliability of your equipment, from norfar.com. Fits many Continental 4 cylinder engines from 1940 to present:

1940-65 : F4 series; F124, F4124, F140, F4140, FA140, F162, F4162, FA162.

1965-present: F4 series; F135, F163

1965-present; Y4 series; Y69, Y91, Y112, YA112, IY112, Y4069, Y4091, Y4112

Also replaces Delco distributors and Prestolite (SEE LIST BELOW). VERIFY your distributor # before ordering.    Wholesale priced for businesses, resellers and equipment distributors.

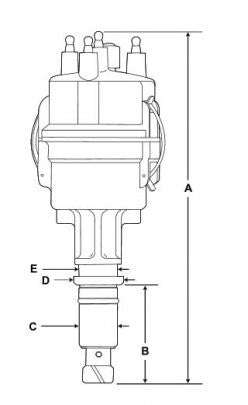

Dimensions:
A: 7.58
B: 1.31
C: 1.06
D: 1.36
E: 1.05
Drive: Tang
Rotation: Counter Clockwise





Continental Distributor # *
F162M-00232
F162M-00311
F162M-00315
F162M-00347
F162M-00412
F162M-00446
F162M-00462
F162M-00466
F400M-00305
F400M-00307
F400M-00392
F400M-00411
F400M-00413
F400M-00449
F400M-00466
F400M-00472
F400M-00503
F400M-00507
F400M-00516
F400M-00518
F400M-00521
F400M-00531
F400M-00532
F400M-00533
F401M-00405
F401M-00406
Y112M-00237
Y112M-00305
Y112M-00311
Y112M-00500
Y400M-00281
Y91M-00411

* 4 cylinder and 6 cylinder Continental distributors replace the original Prestolite and/or Delco-Remy distributors in F4, F6 and Y4 series engines manufactured since 1965 and require no modifications. On engines built prior to 1965 some modifications may be necessary.

Delco Distributor #
1110306
1110402
1110420
1110423
1111310
1111356
1111432
1111576
1111712
1111716
1111717
1112604
1112635
1112637
1112673
1112789

Prestolite Distributor #
IAD-4029
IAD-4029A
IAD-6003-2H
IAD-6004-1E
IBT-4101H
IBT-4105B
IBT-4705
IBT-4706
IDJ-4008
IDJ-4012
IGB-4045A
IGC-6004-1
IGW-4139
IGW-4139-C
IGW-4156A
IGW-6581B





Features:
* Durable yet lightweight housing
* Integrated Ignitor Electronic technology
* Superior venting system
* ‘O’ ring seal prevents oil leakage
* Precision engineered module switches 2 times more
energy than other electronic ignition system
* Timing remains constant with an amazing 1/4°
accuracy all the way down to zero RPM
* Effective RPM range of 0 to 6000
* Non-tracking cap and rotor
* Warranty: 30 months Ignitor module / 90 days
mechanical


Collections: Engine Distributors
